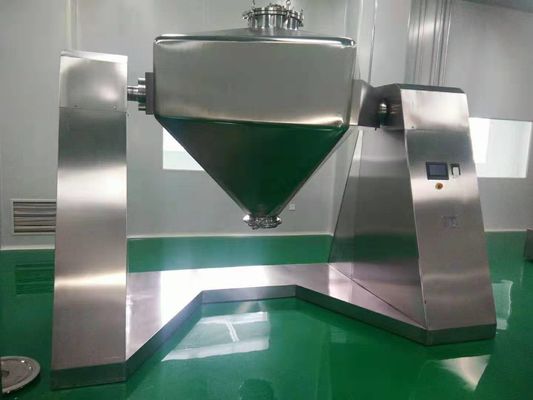

Fzh Square Cone Mixer Clean Pharmaceutical Particulate Powder Mixing Machine
Application
Researched and developed according to the features of various types of mixers, the square cone mixer is a mixer with very wide application. It fully meets GMP requirements and other relevant industry standards. It is especially suitable for processes of products with relatively simplex varieties and relatively large batches, such as the mixing of solid preparations in such industries as medicine, food, dairy products, chemical reagents, etc.
Work principle
The materials enter the mixing barrel through manual feeding, vacuum feeding, floor material dropping or special lifting machine. As the symmetrical axis of the hopper forms an included angle with the rotation axis, different components of materials will make three-dimensional movement in the closed hopper, producing strong turning, diffusing and shrinking actions and achieving the best mixing.
Feature:
This machine is suitable for mixing materials in the pharmaceutical, chemical, metallurgical, food, and feed
industries.
The materials are loaded into a square cone shaped closed mixing barrel, and the symmetrical axis of the mixing barrel forms an angle with the axis of rotation.
Different groups of materials move in three dimensional space in the closed barrel to produce strong flipping and
diffusion and contraction effects to achieve the best mixing effect.
The inner and outer walls of the cylinder are all mirrorfinished, no dead corners, easy to discharge, easy to clean,
no cross-infection, and conform to "GMP" requirements.
Technical Parameter
Model | Main structural dimensions | Volume L |
Net Load kg |
Speed rpm |
Machine Weight T |
Total power kw |
||||||
L | W1 | W2 | H1 | H2 | H3 | DN | ||||||
FH-400 | 2100 | 1450 | 1150 | 800 | 1900 | 2250 | 150 | 400 | 200 | 3-20 | 0.6 | 3 |
FH-500 | 2250 | 1605 | 1250 | 800 | 2065 | 2405 | 150 | 500 | 250 | 3-20 | 0.7 | 3 |
FH-600 | 2350 | 1700 | 1250 | 800 | 2120 | 2500 | 200 | 600 | 300 | 3-20 | 0.9 | 4 |
FH-800 | 2500 | 1825 | 1250 | 800 | 2230 | 2625 | 200 | 800 | 400 | 3-20 | 1 | 5.5 |
FH-1000 | 2750 | 1900 | 1250 | 800 | 2300 | 2700 | 200 | 1000 | 500 | 3-15 | 1.1 | 5.5 |
FH-1200 | 2880 | 1950 | 1400 | 800 | 2430 | 2750 | 200 | 1200 | 600 | 3-15 | 1.2 | 5.5 |
FH-1500 | 3000 | 2000 | 1400 | 800 | 2540 | 2800 | 250 | 1500 | 750 | 3-15 | 1.3 | 7.5 |
FH-2000 | 3200 | 2350 | 1400 | 800 | 2680 | 3150 | 250 | 2000 | 1000 | 3-15 | 1.7 | 7.5 |
FH-2500 | 3400 | 2500 | 1600 | 800 | 2840 | 3300 | 250 | 2500 | 1250 | 3-12 | 1.9 | 11 |
FH-3000 | 3750 | 3050 | 1600 | 800 | 3000 | 3850 | 250 | 3000 | 1500 | 3-12 | 2.4 | 11 |
FH-4000 | 3850 | 2875 | 1800 | 1000 | 3300 | 3875 | 250 | 4000 | 2000 | 2-10 | 2.9 | 15 |
FH-5000 | 4200 | 3000 | 2000 | 1000 | 3430 | 4000 | 250 | 5000 | 2500 | 2-10 | 3.5 | 18.5 |
FH-6000 | 4500 | 3300 | 2400 | 1000 | 3600 | 4300 | 250 | 6000 | 3000 | 2-10 | 4.8 | 22 |
FH-8000 | 4900 | 3380 | 2600 | 1000 | 3900 | 4380 | 250 | 8000 | 4000 | 2-8 | 5.8 | 30 |
FH-10000 | 5300 | 4300 | 2600 | 1000 | 4350 | 5300 | 250 | 10000 | 5000 | 2-8 | 6.9 | 45 |
Schematic
