SYH Series Automatic Multi-Direction Mixer Three Dimensional Motion Mixer Machine
Characters:
1. The material charge rate of barrel is big. Maximum rate can be up to 90% (while normal mixer has only 40-50% of charge rate). It is high in efficiency and short in mixing time.
2. The barrel adopts arc shape connections and its well polished.
Working principle:
Different with traditional rotary mixer on working principle, three-dimensional mixer make horizontal movement, rotation, swinging in the cubic three-dimensional space. Materials are in combined motion of rotary flowing, horizontal moving, upside down falling; alternating pulses push materials continuously; turbulence caused by the combined motion has energy gradient and this make each particle of mixed materials have different motion state; each particle of mixture change their own position; and thus the materials get mixed homogeneously.
Application:
The machine is used for mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.
Specification
| Model | SYH-1 | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 |
| barrel volume(L) | 1 | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max. Loading capacity(L) | 0.8 | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 |
| Max. Loading weight(kg) | 0.5 | 2.4-4.5 | 7.5-13.5 | 25-45 | 50-90 | 100-180 | 200-360 | 300-540 | 400-750 | 550-900 |
| Speed of driving shaft(r/min) | 15-30 | 8-15 | ||||||||
| Motor power(Kw) | 0.12 | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Overall dimension (mm) | 500×600×600 | 600×1000 ×1000 |
800×1200 ×1000 |
1150×1400 ×1300 |
1250×1800 ×1550 |
1450×2000 ×1550 |
1650×2200 ×1550 |
1850×2500 ×1750 |
2100×2650 ×2000 |
2150×2800 ×2100 |
| Total Weight(kg) | 50 | 150 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 2000 | 2500 |
Product Details

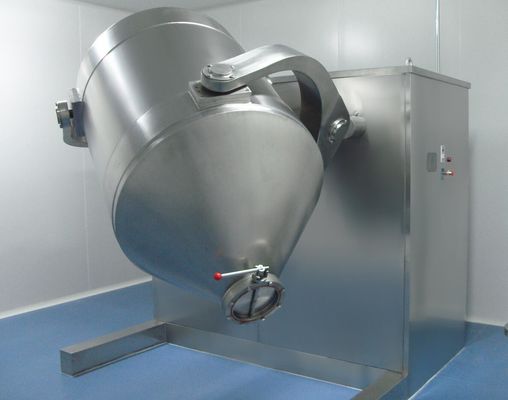

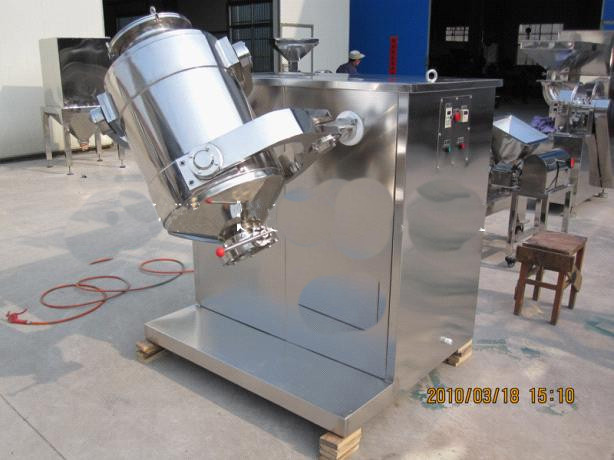

Product show
Package & Shipping
Our Services
1.One year guarantee for whole machine
2.24 hours technical support
3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5.we also can provide training service which help opeators handle the machine well.
FAQ
1. What about your baling machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation.
2. What about your baling machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
