50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender

1 Set (Min. Order)
MOQ
US $930-35,000 / Set
Price
50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender
Features Gallery Product Description Request A Quote
Features
Specifications
Mixing Drum Shape: Circular Groove
Range Of Spindle Speed(r.p.m): 4 - 80 R.p.m
Power (kW): Customized
Voltage: 3P AC208-415V 50/60Hz
Material Processed: Chemicals, Food, Medicine
Shaft Seals: Air Seal, Mechanic Seal, PTFE Seal, Rubber/Oil Seal
Specification: 50~9000L
Warranty: 1 Year
High Light:

50L Industrial Mixer Machines

,

9000L Industrial Mixer Machines

,

LDH Horizontal Ribbon Blender

Basic Infomation
Place of Origin: Changzhou,China
Brand Name: Melton
Certification: CE/ISO
Model Number: LD,LDH ,Customized
Payment & Shipping Terms
Packaging Details: Plywood Case Packing,Standard Shipping Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Year
Product Description



LD/LDH Horizontal Pigment Powder Plough Shear Mixer Plough Blender Plough Mixer









Introduction


Plough share mixer with oil spray system is used to mix dry powder, granules, low fibrous materials and mix paste with low viscosity, and spray liquid together.





Working Principle


The horizontal ribbon blender consists of a U-shape trough with a semicircular bottom and is fitted with a horizontal longitudinal shaft.The shaft has mounted arms supporting a double spiral type ribbon. Inner ribbons move materials toward the ends of the ribbon blender whereas the outside ribbons move material back toward the center of the ribbon blender. The ribbons move materials both radially and laterally to insure thorough blends in short cycle times. the materials form the axial reciprocating motion in the mixing chamber. Material outlets are in the middle of the cylinder bottom. The outside ribbon driven by the main shaft moves materials to discharge.


Features of plough shear mixer

Plough shear mixer is formed circular cylinder barred, drive mechanism, plough shears ,discharging vent and other devices ; plough share inside mixer is rotating with main axial so that the materials along with the cylinder cantilever radial circumferential turbulence, at the same time the radial material through shear group, was scattered by the high speed sheer ,constant alternation, compound, the materials is mixed uniformity in short time.
1. It is high speed to the materials for cutting , crushing ,blending.


2. It is with attractive appearance under advance processing technology , there is smaller gap between plough shear and barrel .


3. Main shaft seal with PETP seal and air -purged seal .


4. It can be added heating or cooling jacket device if necessary .

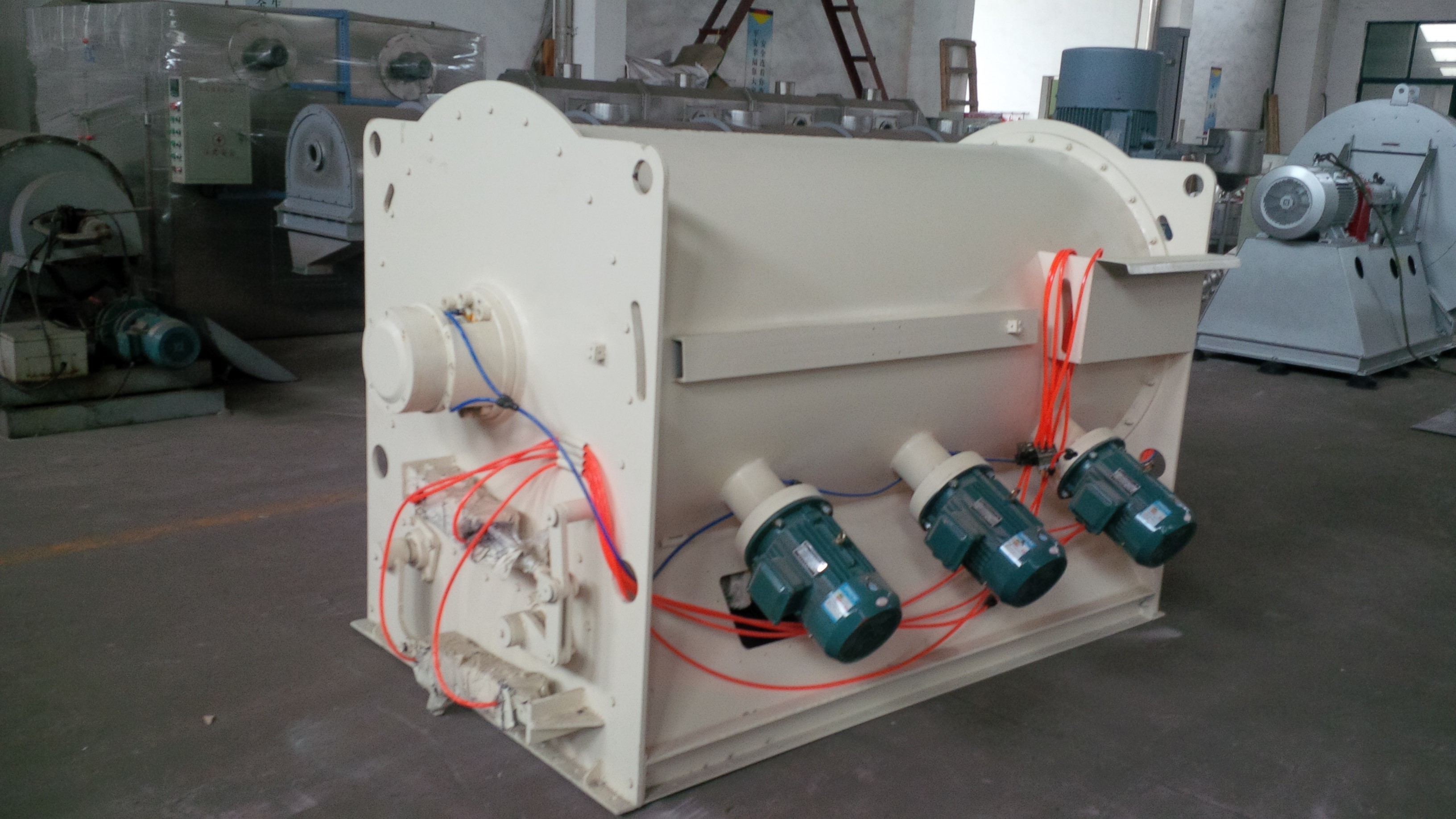

50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 050L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 1
50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 2


Schematic
50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 3



Typical Application


Bakery premixes cosmetics, instant drink nutraceuticals, protein powders, spices, sugar mixture, vitamins, animal feed, ceramics,
pigments, catalysts, Plastic resins, carbon black, polyethylene, polymer additives, PVC compounding, cleaning compounds,
talcum powders, laundry detergents.

50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 4





Product Parameters




Model Total Volume(L) Max Loading (kg) Power (kw) Speed (r/min) Overall Size (mm)
WLH-0.3 300 180 4 63 1800×860×1000
WLH-0.5 500 300 5.5 63 2000×1100×1200
WLH-1 1000 600 7.5 41 2400×1400×1380
WLH-1.5 1500 900 11 41 2610×1560×1570
WLH-2 2000 1200 15 32 3000×1600×1630
WLH-3 3000 1800 18.5 32 3300×1700×1800
WLH-4 4000 2400 22 29 3170×1850×1900
WLH-5 5000 3000 30 29 3900×2000×2200
WLH-6 6000 3600 37 26 4200×2100×2100
WLH-8 8000 4800 45 26 4600×2200×2300
WLH-10 10000 6000 55 23 4900×2400×2400















Product Details


50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 5

50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 6





Product Show


50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 7

50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 8



50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 9







Package & Shipping

50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 10



Our Service


50L-9000L Industrial Mixer Machines LD / LDH Horizontal Ribbon Blender 11



FAQ


In order to quote you the right ribbon paddle mixer price, Please specify as much information as possible.

- What are the materials to be handled?
- What's the mixing capacity per batch?
- What is the particle size of the raw materials?
- What is the bulk density of raw materials?
- Does the product need to be heated or cooled while mixing?
- Does the mixer need to have a vacuum applied when the product is mixing?
