working principle
The working principle of the FG series airflow dryer is to complete the drying of the wet material in two steps. The raw materials are firstly subjected to positive pressure drying by a mixture of secondary drying tail gas and supplementary hot air, and the used high temperature and low humidity tail gas is discharged outside the machine. The dried semi-finished products are dried by fresh hot air and subjected to secondary negative pressure. Dry finished measuring packaging. The used high-temperature and low-humidity exhaust gas is used as a first-stage drying to complete a good cycle drying process. The amount of supplemental hot air can be arbitrarily adjusted as required, so that the machine has wide applicability.
Adaptable Materials
This equipment is widely used for the drying of powdery and granular materials in the food, chemical, pharmaceutical, building materials and other industries. The products that have been used in this series are: starch, glucose, fish powder, sugar, sugar, wine trough, feed, gluten, plastic resin, coal powder, dyes, etc.
Product Features
♦ Powerful drying. Little invest and the amount of evaporated moisture is high (from 50kgH20/h2000kgH20/h)
♦ The drying time is short. The series is suitable in stong heat sensitive materials. The finished product is seperated from outside, and no pollution with high quality.
♦ The equipment is a total set, the heat sourse can be choose from steam, coal fuel, oil fuel and gas fuel hot air furnace.
Technical specifications
| model | Evaporation moisture (kg/h) | Installed power kw | Land area m 2 | Thermal efficiency(%) |
| FG0.25 | 113 | 11 | 3.5x2.5 | >60 |
| FG0.5 | 225 | 18.5 | 7x5 | >60 |
| FG0.9 | 450 | 30 | 7x6.5 | >60 |
| FG1.5 | 675 | 50 | 8x7 | >60 |
| FG2.0 | 900 | 75 | 11x7 | >60 |
| FG2.5 | 1125 | 90 | 12x8 | >60 |
| FG3.0 | 1150 | 110 | 14x10 | >60 |
| FG3.5 | 1491 | 110 | 14x10 | >60 |

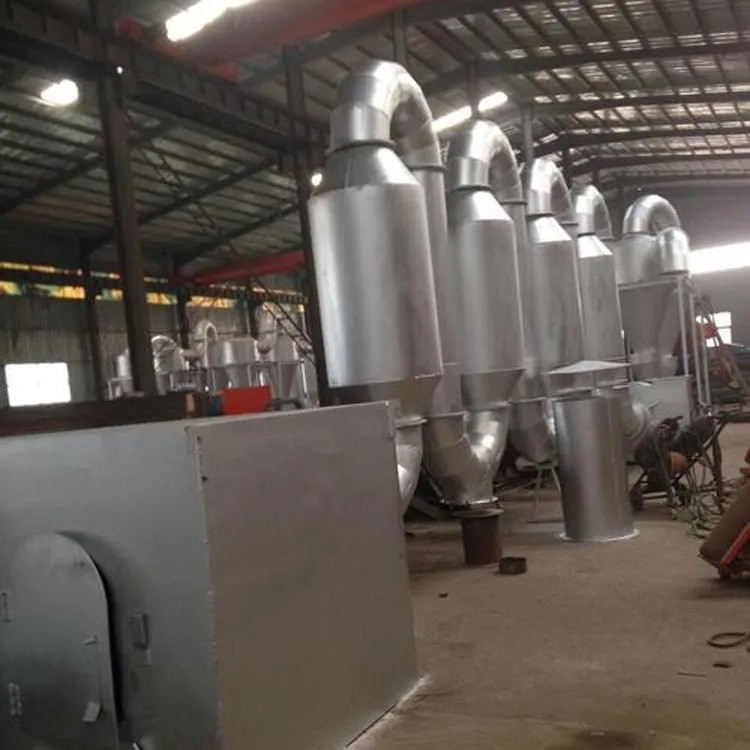

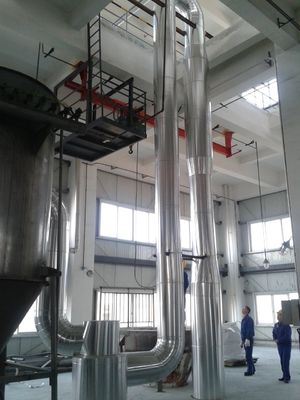

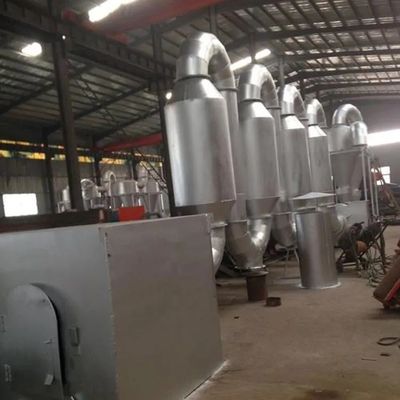

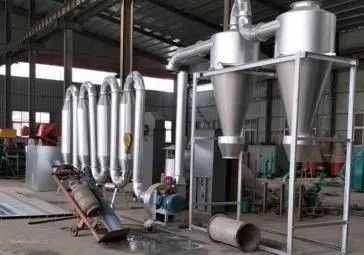

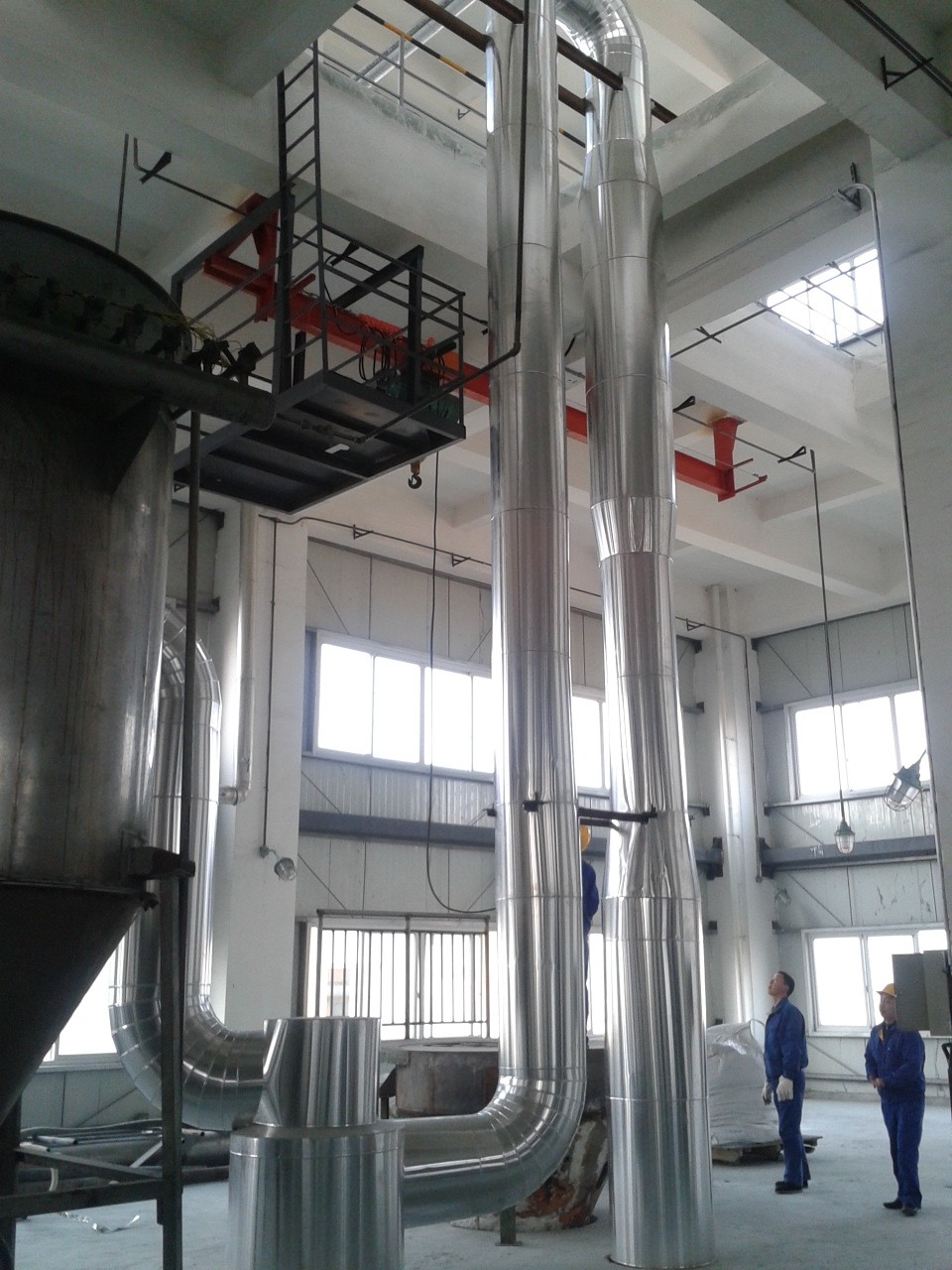

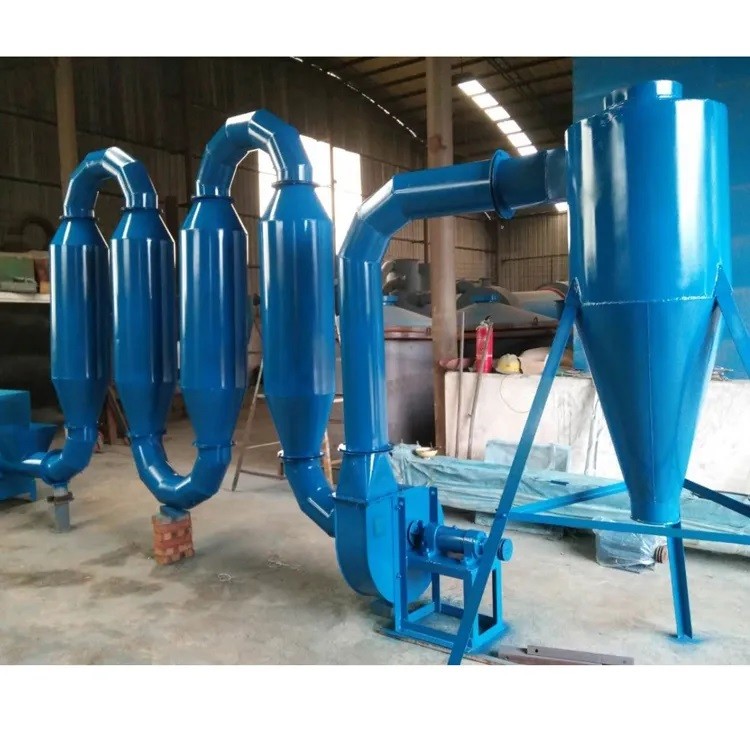

Product Details

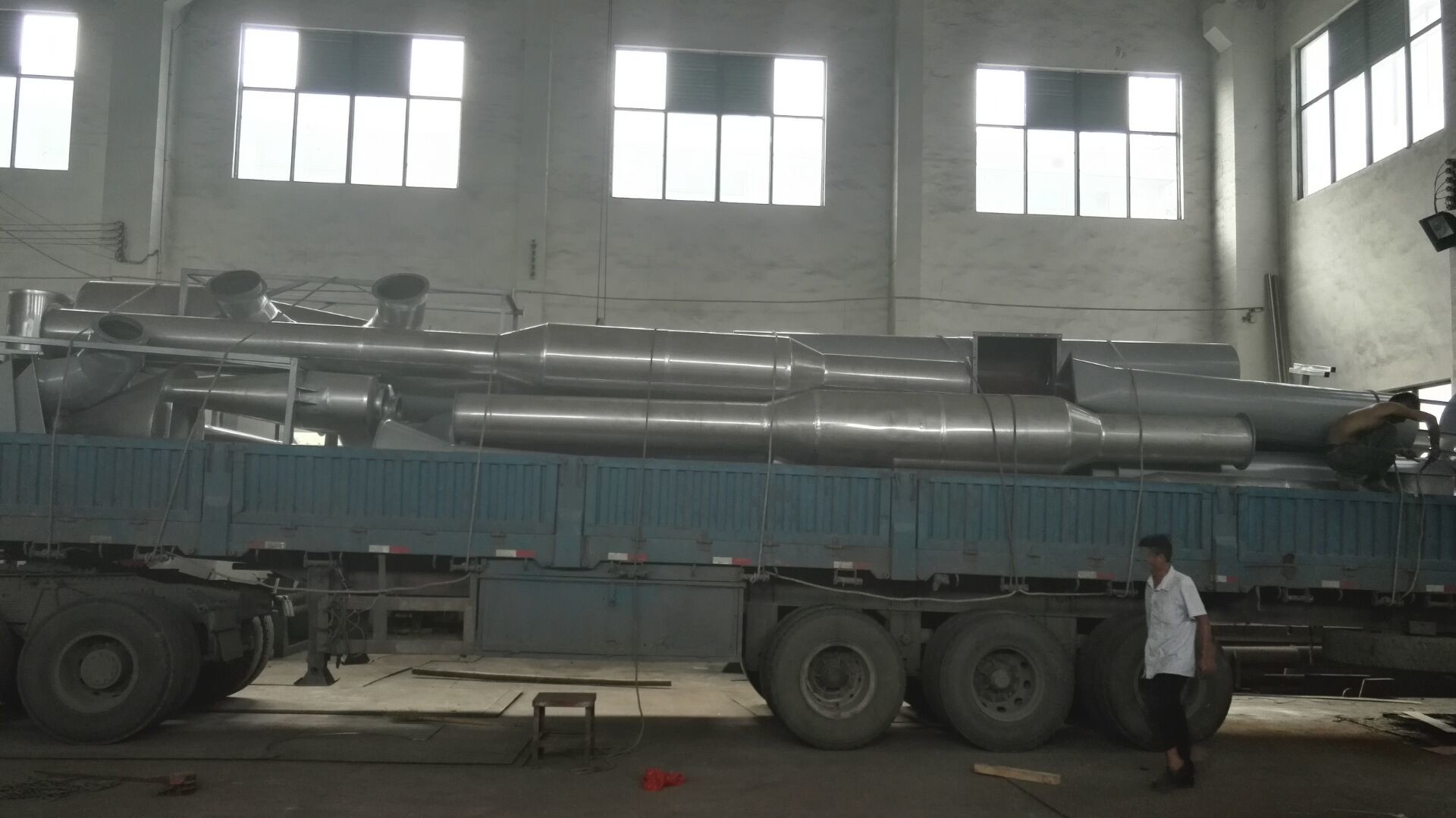

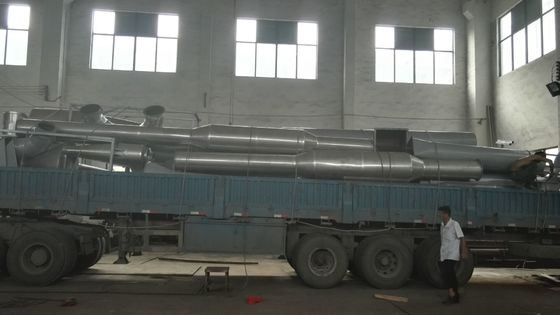

Packing & Delivery
