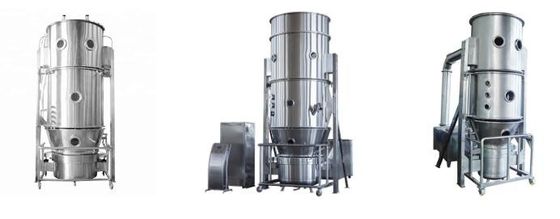

Good Quality Sanitary Vertical Pharmaceutical Processing Industry Fluid Bed Dryer
Application
This dryer is applicable for the mixture, granulation and drying of powder materials. It is widely used in the fields of medicine, foodstuff, chemical, light industry, etc and is one of the granulating drier adopted extensively in the world at present.
Technique parameters:
| Spec. | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
| ltem | unit . | ||||||||||
|
Container of raw material Production capacity |
dim. | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
| Min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 | |
| Max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| Consume of steam | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
| Amount of compressed air | m³/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| Temperature | ºC | Adjustable from ambient to 120 | |||||||||
| Cllection rate | % | >99 | |||||||||
| Time of operation | min | 15-30(Depends on material) | |||||||||
| Content ol final product | % | ~0.2(Depends on materil) | |||||||||
| Noise | dB | ≤75 | |||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
Characteritics
1). All parts of contacted with raw materials are made up by stainless steel.
2). Seated using silastic gas-filled sealing ring.
3). Able to control granular size by means of two-flow spraying gun.
4). Able to finish mixture, granulation and drying in the same sealed container thanks to rapid & high effective operation, thus preventing powder from fly up, leakage and pollution.
5). The upper top and lower bottom of the machine are all butterfly seal joints which are beautiful in shape, small in air resistance, clean, easy to be washed, have no dead comer and are in conformity with requirements of GMP.
Working principle
Powder materials fed into hopper sealed container will form a suspending & fluidizing state and flow circularly owing to hot air steam action so as to reach to be uniformly mixed, and then fog type adhesive is sprayed to lubricate/wet powder inside the container, making powder to be condensed as small porous grains and finished grains, that is to say, due to high effective drying & continuous vaporized moisture on continuous condensed powder under hot air-steam action, ideal, uniform and porous ball-shaped grains will be formed in the container at three operation of mixture, granulation and drying finished a time, namely "One Step Granulating".
PRODUCT DETAILS
CERTIFICATION
WORKSHOP
Changzhou Melton Trading Co., Ltd was established in 2008. Our company is located in the birthplace of China's drying equipment industry - Zhenglu Industrial Park, Changzhou City, Jiangsu Province. It is a modern enterprise engaged in the R&D, production and sales of various drying equipment, sludge dryers, vacuum dryers, granulators, pulverizers, mixers, screening and dust removal and other equipment. In recent years, we have continuously increased investment in technical transformation, and manufactured a variety of low-energy, low-emission dryers to meet customers' environmental protection production needs.
All kinds of drying equipment produced by our company are widely used in pharmaceutical, chemical, food, agricultural and sideline product processing, textile, electronics, light industrial products, fertilizer, feed and other fields. The products are all over the country and exported to Southeast Asia, Europe, America and other countries.
The company adheres to the entrepreneurial philosophy of "technical innovation, quality-oriented", promotes the work style of "simple and rigorous, strives for perfection", advocates "enterprise integrity, considerate service", regards product quality as life, and respects customers from all over the world as friends.
We warmly welcome people from all walks of life to come to cooperate, negotiate and seek common development!
FAQ
What is vertical fluidized bed dryer?
The vertical type is used for batch drying, and the flat is used for continuous drying. A detachable vessel is placed at the bottom of the dryer for the loadingAS3zs34 and unloading of material. This vessel has perforated mesh through which hot air with high pressure is passed.
How does your factory regard quality control?
A: Quality is priority. We always attach great importance to quality control from raw material to the very end.
Principle:
The fresh air is filtered by the two or three filters and then enter into the heating system for heating . After heated , the hot air enter into the drying chamber and blow up the material in the bowl of the FBD and let the material into fluidization conditions .during this period , the material is dried . When customer use the machine , they can set the procedure and parameters according to the process requirements , and then start the machine .
