Product Description
PLG series continuous plate dryer is a kind of high efficiency conducting and continuous drying equipment. Its unique structure and operating principle provide advantages of high heat efficiency, low energy consumption, less occupying area, simple configuration, easy operation and control as well as good operating environment etc. It is widely used in drying process in the fields of chemical, pharmaceuticals, agricultural chemicals, foodstuff, fodder, process of agricultural and by-products etc., and is well received by various industries.
Work Principle
Wet materials are fed continuously to the top drying layer in the dryer. They will be turned and stirred continuously by harrows when the harrow's arm rotates, the material flows through the surface of the drying plate along the exponential helical line. On the small drying plate the material will be moved to its exterior edge and drop down to the exterior edge of the large drying plate underneath, and will then be moved inward and drop down from its central hole to the small drying plate on the next layer. Both small and large drying plates are arranged alternately so as materials can go through the whole dryer continuously. The heating media, which could be saturated steam, hot water or thermal oil, will be led into hollow drying plates from one end to other end of the dryer. The dried product will drop from the last layer of the drying plate to the bottom layer of the smell body, and will be moved by harrows to the discharge port. The moisture exhausts from materials and will be removed from the moist discharge port on the top cover, or sucked out by the vacuum pump on the top cover for vacuum-type plate dryer.
Flow Chat
Main Features
1. Easy regulation and good applicability.
The residence time of materials can be accurately adjusted. Single flow of material without back-mixing; even drying and stable quality, no need to re-mix.
2. Simple and easy operation.
Through a special endoscope large inspection door, it is possible to have a very carefully cleaning and observation within the device.
3. Low energy consumption.
Using conductive heat to dry, with high thermal efficiency and low energy consumption.
4. Good operating environment; recyclable solvents and dust emissions all meet the requirements.
5. Easy installation and small covering area

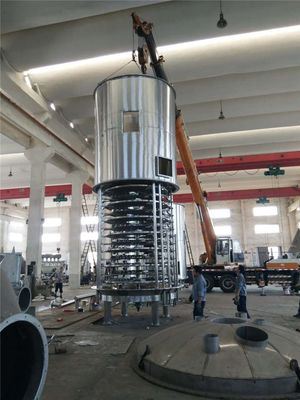

The dryer leaves the factory and is transported as a whole. What you need to do is just to hoist it into position. It is very easy to be installed. Because the drying tray is arranged in layers and installed vertically, even large drying area still consumes little area.
Application
PLG series tray continuum dryer is widely used in drying of industries of organic chemicals, inorganic chemicals, medicine, food, forage, fertilizer, agricultural processing and so on.
Details Display
Our Service
Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
