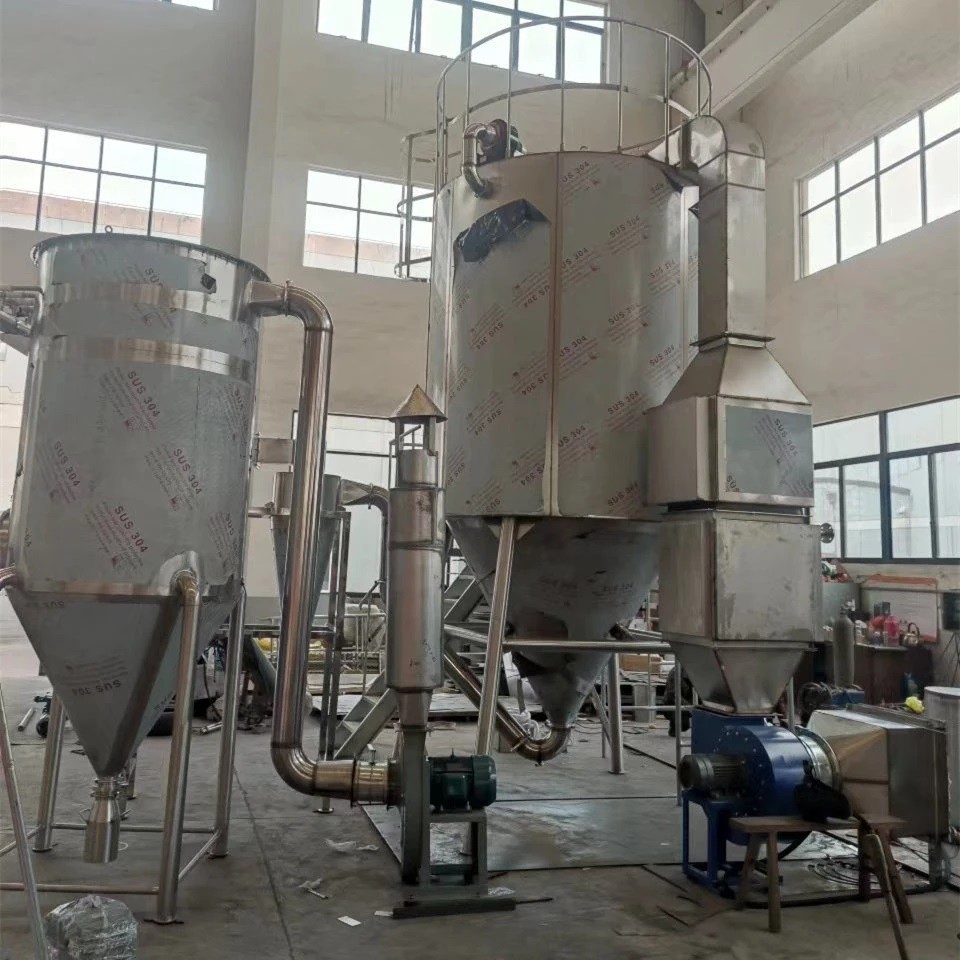

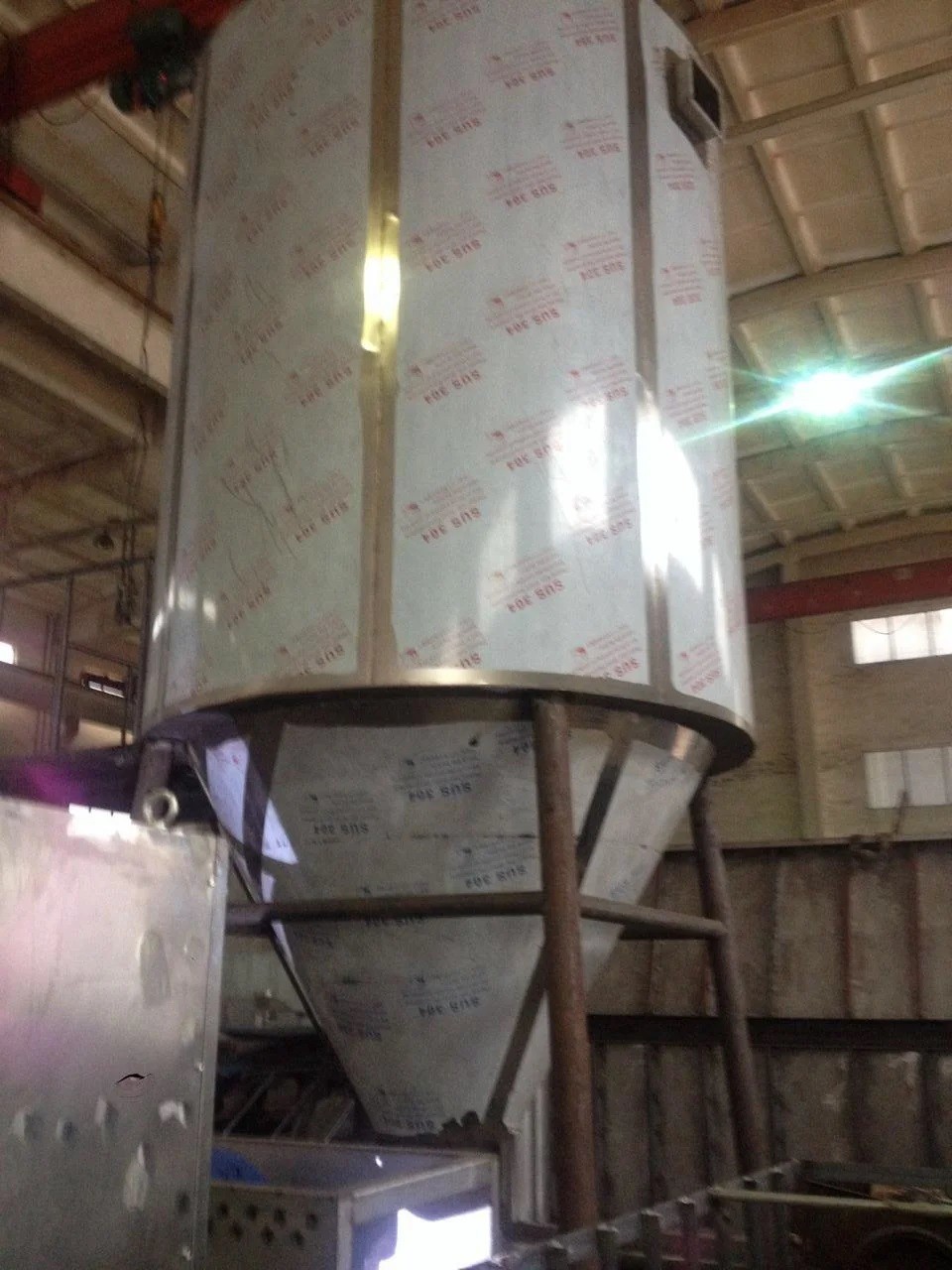

After filtering and heating, the air enters the air distributor on the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the high-speed centrifugal atomizer at the top of the tower, and (rotating) sprays into very fine misty liquid beads, which can be dried into finished products in a very short time in co-current contact with hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is evacuated by the fan.
Flow Chart
Adapt to materials
Chemical industry: sodium fluoride (potassium), basic dyes and pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts, sulfuric acid agents, amino acids, white carbon black, etc.
Plastic resin: AB, ABS emulsion, urinary formaldehyde resin, phenolic resin, dense rubber (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc.
Food industry: fat-rich milk powder, gluten, cocoa milk powder, milk replacer powder, blood hunting powder, egg white (yellow), etc.
Food and plants: oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, spray dried food products, etc.
Sugars: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder, etc.
Technical Parameters
ItemParameterSpec | LPG | |||||
5 | 25 | 50 | 100 | 150 | 200-2000 | |
Inlet Temperature ℃ | 140-350 automatically controlled | |||||
Outlet Temperature ℃ | ~80-90 | |||||
Max.Water Evaporation Capacity | 5 | 25 | 50 | 100 | 150 | 200-2000 |
Centrifugal Spraying Nozzle Transmission Mode | Compressed Air Transmission | Mechanical transmission | ||||
Rotation Speed Rpm | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
spraying Disc Diameter mm | 50 | 100 | 120 | 140 | 150 | 180-340 |
Heat Supply | Electricity | Electricity+steam | Electricity+steam,fuel oil and gas | Settled by users themselves | ||
Max.Electric Heating Power kw | 9 | 36 | 63 | 81 | 99 | |
Overall Dimensions m | 1.8×0.93 ×2.2 |
3×2.7 ×4.26 |
3.7×3.2 ×5.1 |
4.6×4.2 ×6 |
5.5×4.5 ×7 |
Depends on the concrete conditions |
Dried Powder Restoring Rate % | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Note:For more information please contact Gu-Jane@outlook.com |
Ordering instructions
◎Name of material and liquid, physical properties: solid content (or water content), viscosity, surface tension, PH value.
◎After drying, powder capacity, allowable residual water content, particle size, and upper limit of allowable temperature.
◎Production, daily working hours.
◎Available energy: steam pressure available, electric capacity, available for coal, oil and gas.
◎Control requirements: Whether the inlet and outlet temperatures need to be controlled automatically.
◎Powder collection requirements: whether to install bag traps, and environmental requirements for exhaust emissions.
◎Other special requirements.
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q Are you trading company or manufacturer?
A We are trading company and have our own factory.
Q How long is your delivery time?
A Generally within 30-60 working days after receiving the payment.
Q Do you provide samples? is it free or extra?
A Yes, we could offer the sample .Considering the high value of our products ,the samples is not
free , but we can give you best price including the freight cost.
Q What is your terms of payment?
A 95% payment before shipment or according to the terms agreed with the customer, the
remaining 5% as the quality guarantee deposit, one year later.
