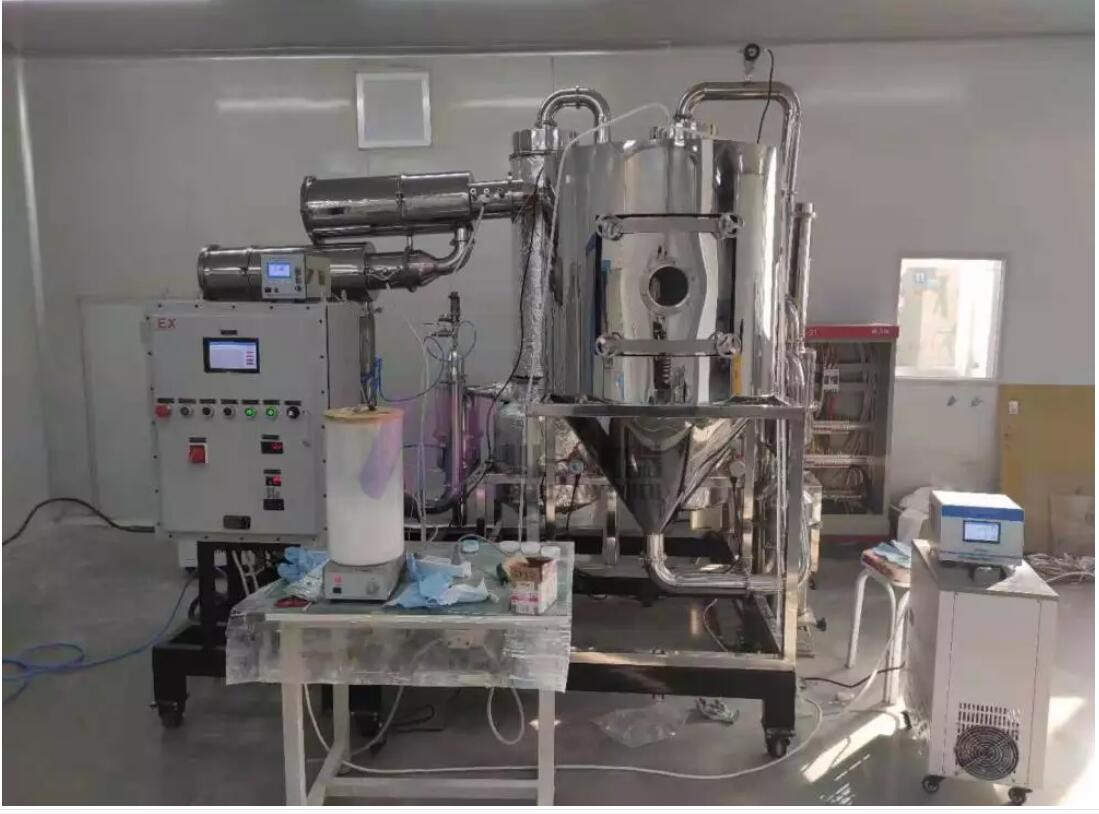

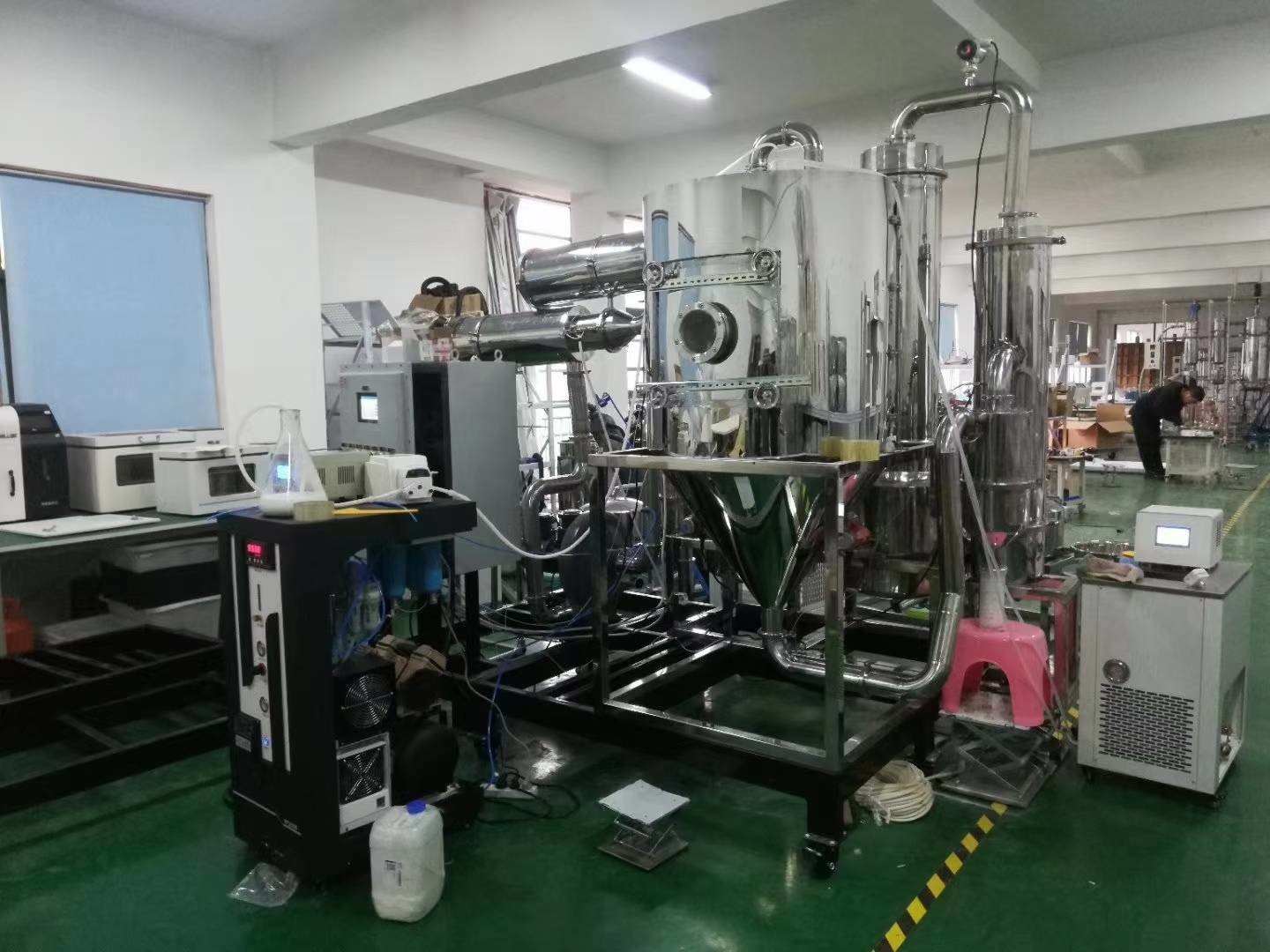

Nitrogen closed loop spray dryer Inert gas atomization dryer
Description:

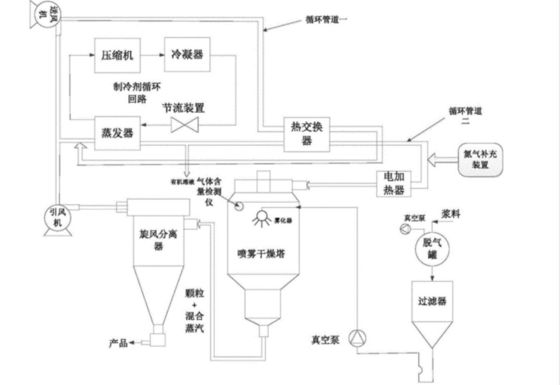

First of all, filling the nitrogen to be heated into the tower, the liquid materials to be dried are transported to the centrifugal atomizer, then they are rotatied in a high speed, and fially, they become the fine droplets, droplets in the drying tower fully heat exchange with nitrogen.
The liquid parts have been instant evoperated, the solid parts become powder materials down to the bottom of the drying tower, and the last, the dried powder discharge from the bottom of the tower.
Among them, evoparated organic solvent through the cyclone seperator, bag dedustor to remover the powder in the role of the blower, and then by the condenser, the dust removered saturated organic solvent gas into liquid discharge from the condenser.
In case the liquid be carried out, there has addied a gas-liquid separator. Among them, as a drying medium for the inert gas being heated as a dry carrier in the system used to re-cycle.
Explosion-proof closed cycle centrifugal spray drying system is working in a confined environment, drying medium is inert gas (like nitrogen), positive pressure operation in the drying tower.
If the internal pressure decreased, the pressure transmitter can control the nitrogen amout entered into the drying tower automatically, to ensure system pressure balance.medium like nitrogen has a affact of bearying moisture, demoval moisture and cycle -transmission, the media can be used cycled.
Application:
Chemical industry: Sodium fluoride (potassium), basic dyes and pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts, sulfuric acid agents, amino acids, white carbon black, etc.
Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense rubber (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc.
Food industry: Rich fat milk powder, grain, cocoa milk powder, milk substitute powder, egg white (yellow).
Food and plant juice: Oats, chicken juice, coffee, instant tea, spices, meat, protein, soybean, peanut protein, hydrolysate, etc.
carbohydrate: Corn syrup, corn starch, glucose, pectin, maltose, etc. ceramics: Alumina, ceramic tile materials, magnesium oxide, talcum powder.
| Specifications | XLP-5 | XLP-10 | XLP-25 | XLP-50 | XLP-100 | XLP-150 |
| Inlet air temperature | 90-140°C,adjustable | |||||
| Exhaust air temperature | 60-80°C, depending on the product to be dried, and URS | |||||
| Nominal water evap.capacity(Kg / h) | 5 | 10 | 25 | 50 | 100 | 150 |
| Heating method | Steam | |||||
| Drying tower diameter (mm) | 1300 | 1500 | 2000 | 2500 | 3200 | 3600 |
| Overall dimensions (m) | According to the configuration and URS | |||||
| Product yield | 99-99.99%,varies with the product features and configuration | |||||
Widely used in the pharmaceutical, chemical industry, foodstuff, spray dry powder process.ect.
Uniform quality
Complete control of moisture content, particle structure, particle size distribution, solubility, and wettability, and retention of natural aromas and flavors.
Unbeatable performance /cost ratio
Energy efficient components, continuous and rapid drying, ease of operation and process automation provide complete control over yield and costs.
Versatility
Customized plant design based on many years of experience in a wide range of applications is your assurance of complete compliance with individual requirements.
Long service life
Top-quality, reliable components, efficient and straightforward CIP and expert engineering increase service life and availability for maximum performance.
Traceability
Automated process control enables end-to-end traceability in compliance with current food standards and regulations.
Company introduction:
Changzhou Melton Trading Co., Ltd was established in 2008. Our company is located in the birthplace of China's drying equipment industry - Zhenglu Industrial Park, Changzhou City, Jiangsu Province. It is a modern enterprise engaged in the R&D, production and sales of various drying equipment, sludge dryers, vacuum dryers, granulators, pulverizers, mixers, screening and dust removal and other equipment. In recent years, we have continuously increased investment in technical transformation, and manufactured a variety of low-energy, low-emission dryers to meet customers' environmental protection production needs.
All kinds of drying equipment produced by our company are widely used in pharmaceutical, chemical, food, agricultural and sideline product processing, textile, electronics, light industrial products, fertilizer, feed and other fields. The products are all over the country and exported to Southeast Asia, Europe, America and other countries.
The company adheres to the entrepreneurial philosophy of "technical innovation, quality-oriented", promotes the work style of "simple and rigorous, strives for perfection", advocates "enterprise integrity, considerate service", regards product quality as life, and respects customers from all over the world as friends.
We warmly welcome people from all walks of life to come to cooperate, negotiate and seek common development!
Certification
1.We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
Packaging:
-The glass parts will be wrapped with foam, then put into the carton; the main body portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS, and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air |
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you. |
Notes for Inquiry:
1. Liquid material name and physical properties: solid contents (or moisture contents), viscosity, surface tension, PH value, etc.
2. Product characteristics: final moisture content required, the range of particle size, and heat-sensitive temperature, etc.
3. Working capacity (kg/h or ton/h). If the capacity is based on per day, per month or per, please also indicate the working hours.
4. Heat source: The pressure of steam
5. Control requirements: if the air inlet temperature should be automatically controlled.
