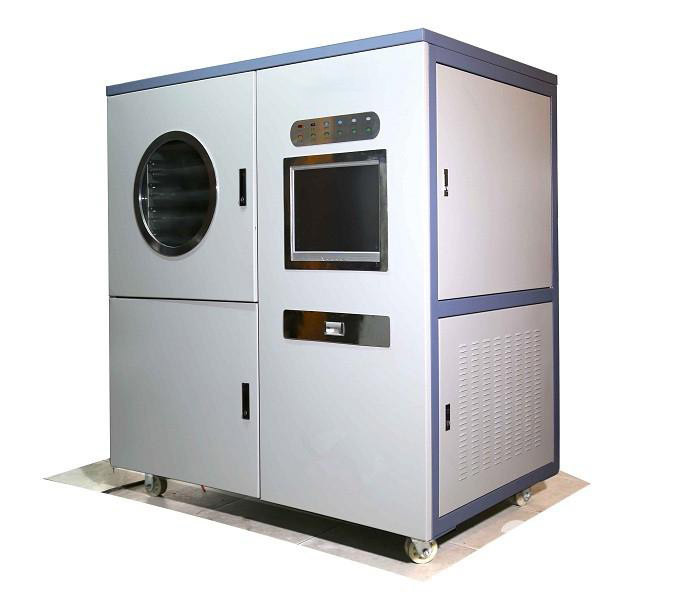

Fruit Industrial Freeze Dryer Machine Vacuum Freeze Drying Equipment

1 Piece (Min. Order)
MOQ
US $10,000-120,000 / Piece
Price
Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 220V-480V,50Hz,3P
Heating Method: Electric Heating
Power: 1100W, 1100W-2300W
Temperature Range: -40~100℃
Capacity: 30-5000kg/batch
Warranty: 1 Year
High Light:

Industrial Freeze Dryer Machine

,

Fruit Freeze Dryer Machine

,

Vacuum Freeze Drying Equipment

Basic Infomation
Place of Origin: Changzhou,China
Brand Name: Melton
Certification: CE/ISO/GMP
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Standard Wooden Case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets / Month
Product Description

High Quality Beef Vacuum Freeze Drying Equipment. Chicken Heart Dryer. Drying Machine For Pork Liver Powder





Descriptions


Vacuum freeze dryer, also known as sublimation drying, abbreviated as FD is a way of drying material that will be in the freezing state, at low temperature, in a vacuum sealed environment, that is, to heat the water in the frozen matter directly from a solid to a vapour and to be trapped by a water catcher. the whole system consists of six components, a drying chamber, a condenser(a water catcher), a heating system, a vacuum system, a refrigeration system and an electrical control system.



Principle


Vacuum freeze dryer is to freeze the dried goods below the temperature of three-phase point, and then sublimate the solid water (ice) in the goods directly into vapor under the vacuum condition, remove it from the articles, and make the goods dry. After the material is pretreated, it is frozen quickly, then sublimated and dehydrated, and then packed in the post-treatment workshop.Vacuum system establishes low pressure condition for sublimation drying bin,heating system provides sublimation latent heat for material, refrigeration system provides cooling capacity for water catcher and drying bin. The quality requirements of freeze-dried products: unchanged biological activity, uniform appearance, full shape, firm structure,Good rehydration and low residual moisture. In order to obtain high quality products, we should have a comprehensive understanding of the theory and technology of freeze-drying. The freeze-drying process consists of three steps: pre-freezing,sublimation and re-freeze-drying(analytical drying). Reasonable and effective shortening of freeze-drying cycle has obvious economic value in industrial production.





Features


1. The advanced control system ensures the quality of freezedried products.



2.Drying chamberwater catcher, vacuum pipeline and other related parts of freeze-dried products are made of sus304 material,which conforms to GMP standard.



3. The refrigeation system adopts low temperature refrigeration, which fully meets the technological requirements of freeze-dried products.



4.The design is standardized and reasonable to ensure easy operation and maintenance.



5. Adopt Two-stage or multi stage vacuum system to ensure the process vacuum requirement in the production process to meet the reasonable freeze-drying time.



6.Low energy consumption design principle, energy saving and environmental protection.



7.Process design according to the reasonable needs of customers.



Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 0Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 1Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 2







Main Application


The vacuum freeze dryer is suitable for drying high-grade raw materials, Chinese medicine pieces, seafood, wild vegetables, dehydrated vegetables, food, fruits, chemical drug intermediates and other materials.



Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 3

Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 4





Product Parameters


Product Model KWD-HFD-1 KWD-HFD-4 KWD-HFD-6
Freeze-dried Area 0.1 square meter 0.4 square meter 0.6 square meter
Cold Trap Coil Temperature <-40ºC (no-load)
Ultimate Vacuum 15pa (no-load)
Power Supply 220V 50HZ
Power 750W 1100W 2300W
Handling Capacity 1-2KG / batch 4-6KG / batch 6-8kg / batch
Layer Spacing 45mm 45mm 50mm
Weight 50KG 80KG 120KG
Material Tray Size 140mm x 278mm three layers 200mm x 450mm four layers 300mm x 400mm four layers
Dimension 400mm x 550mm x700mm 510mm x 700mm 850mm 700mm x 800mm x 1300mm





Product Details Show


Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 5Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 6Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 7Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 8Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 9Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 10Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 11





Packaging & Shipping


Fruit Industrial Freeze Dryer Machine  Vacuum Freeze Drying Equipment 12
