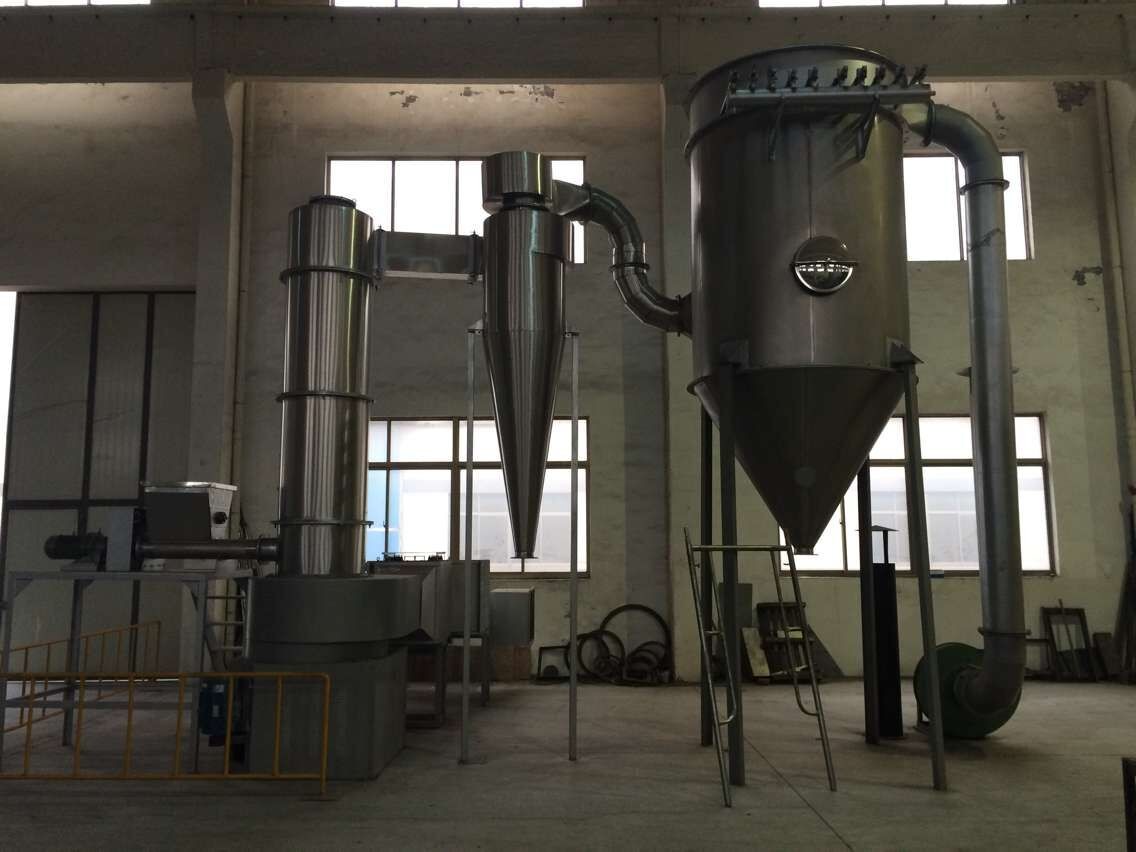

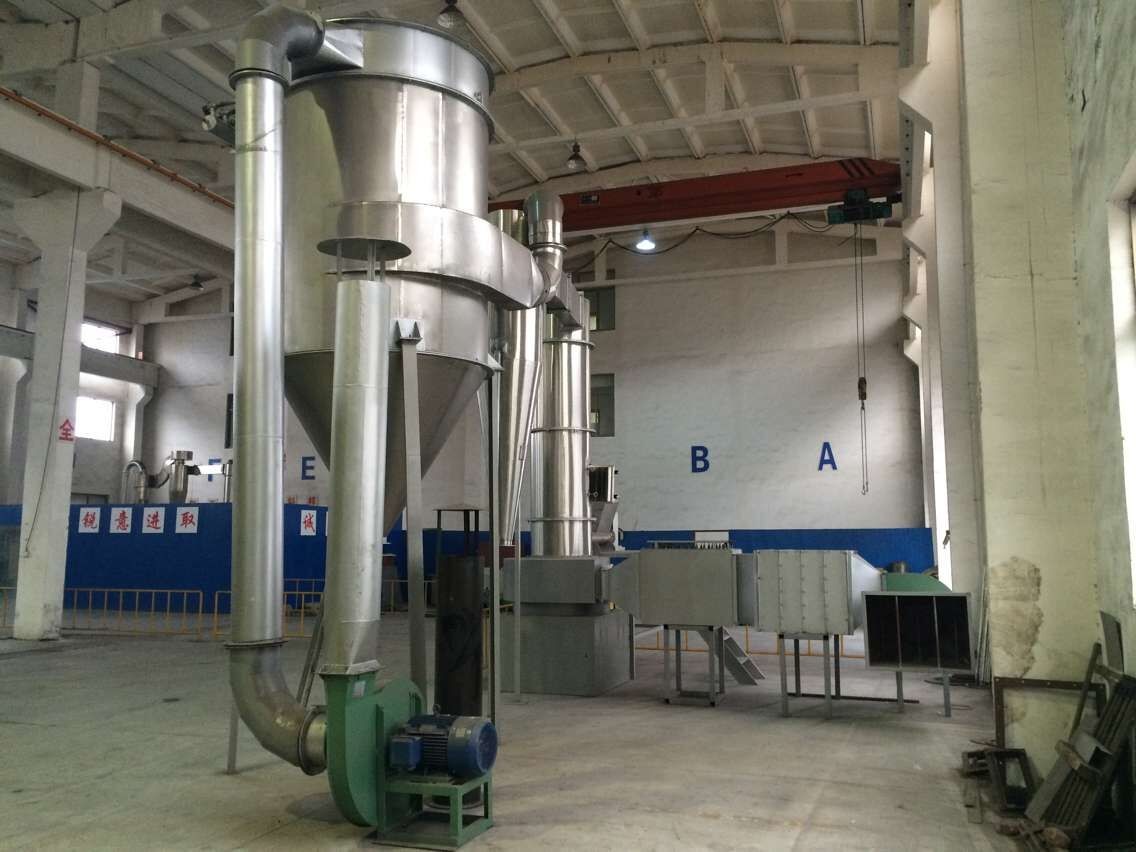

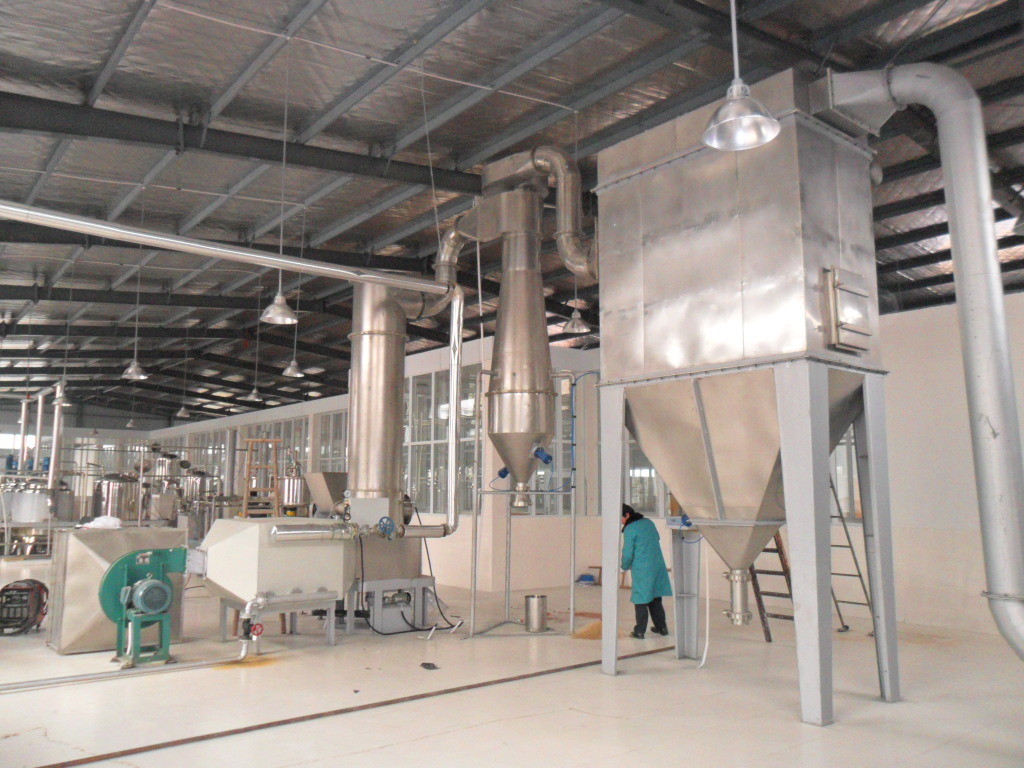

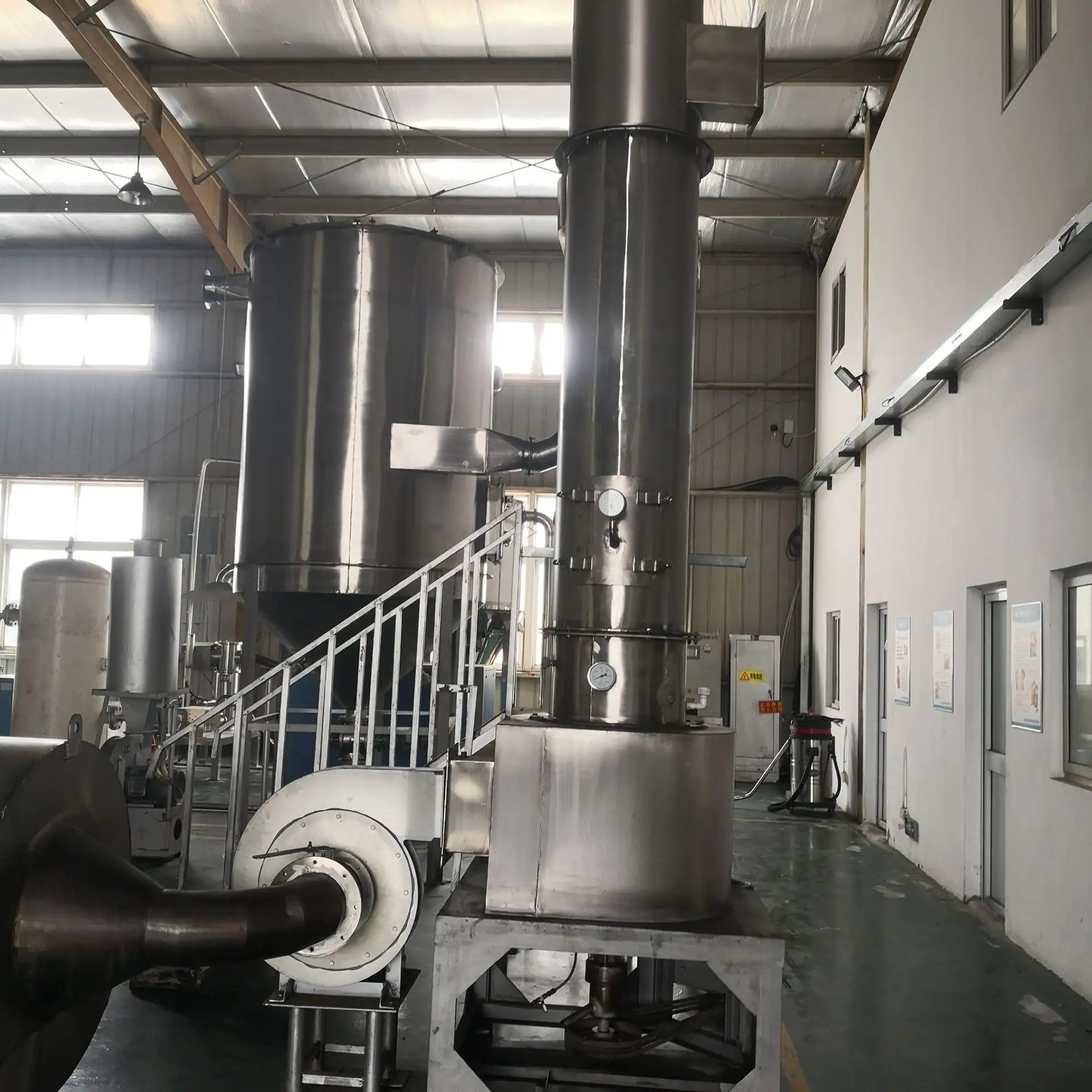

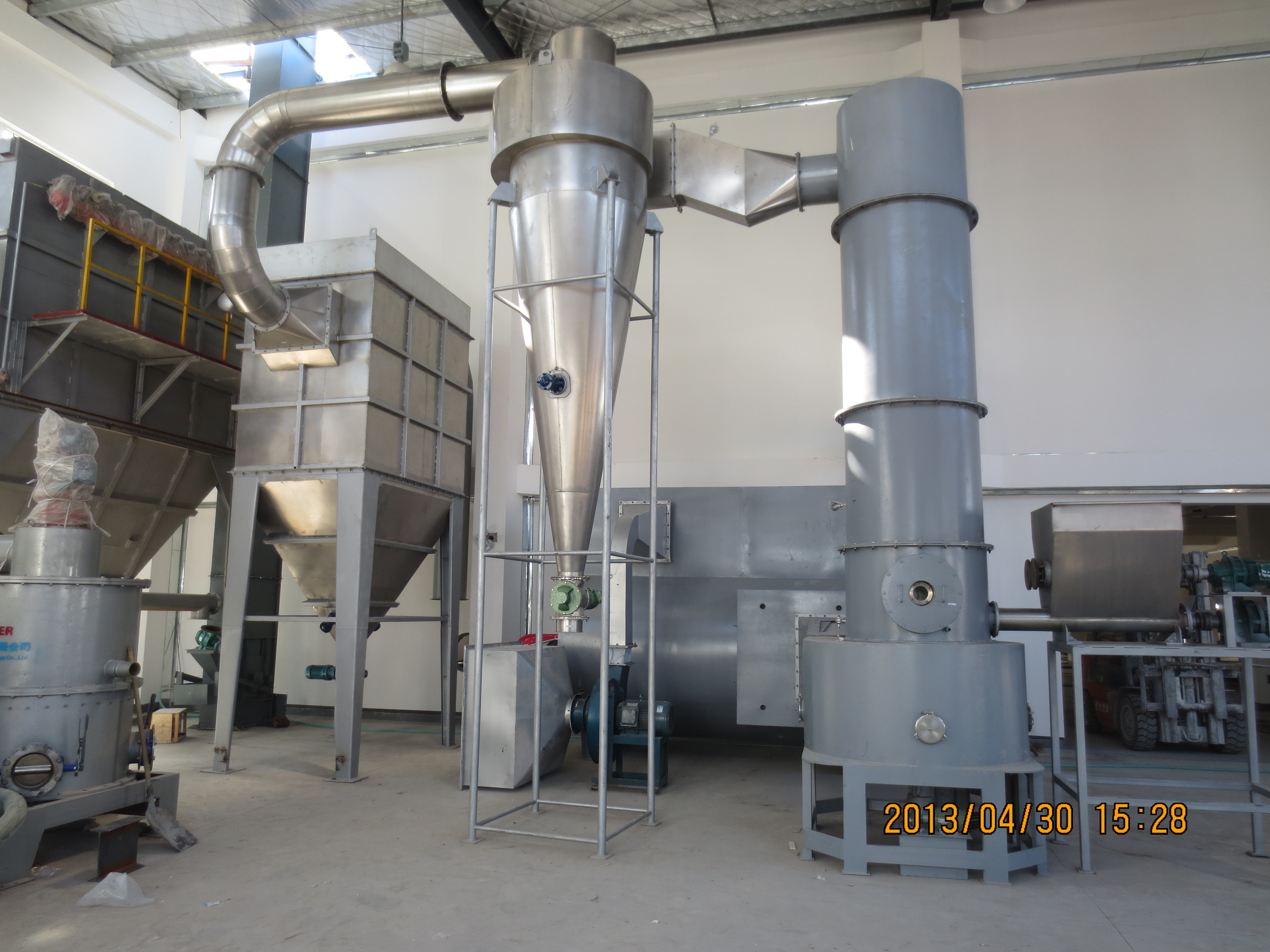

Spin Flash Dryers are the most suited for drying wet cake such as paste or sludge. Spin flash dryers are pneumatic dryers used for drying powdered products such as starches, fibres, and certain proteins (e.g. potato protein). The flash dryer can evaporate large quantities of moisture in a single unit. The starch flash dryer is used for drying the wet potato starch, cassava starch, sweet potato starch, wheat starch and other starch and modified starch after the dehydration. The starch flash dryer also can be used to continuously dry other granular thermo-sensitive materials.
Features
Features:Industrial,Automatic
◎ As the rotating speed of the gas inside the drying chamber is very high and the staying time of the materials is very short, high efficiency, high drying speed, small equipment, large out put can be achieved.
◎The organic combination of swirling, fluidization, spouting and crushing classification technology.
◎Negative pressure or micro-negative pressure operation, good airtightness, high efficiency, eliminating environmental pollution.
◎ At the bottom of the dryer, where the temperature is very high, a special device is equipped to prevent heat sensitive materials from contacting with the heat surface directly. Therefore, it solves the problem of heat sensitive materials carbonization and color changing.
Schematic Of Structure
Technical specifications
model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 |
Host inner diameter mm | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 |
Air volume M3/h | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-20000 | 18000-36000 | 28200-56500 |
Evaporated water kg/h | 12-17 | 40-70 | 80-150 | 150-250 | 230-450 | 300-600 | 600-1000 | 1000-1500 |
Installed capacity kw | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 |
Maximum height m | 4.0 | 4.8 | 5.8 | 6.5 | 7.1 | 7.8 | 8.8 | 10.1 |
Land area m2 | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 |
Product Details
Adapt to materials
Organic matter: Atrazine (a pesticide), lauric acid, benzoic acid, benzoic acid, bactericide, sodium oxalate, cellulose acetate, organic pigments, etc.
Dyestuff: anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates.
Inorganic substances: borax, calcium carbonate, hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide, various metal hydroxides, various heavy metal salts, synthetic cryolite, etc.
Food: soy protein, gelatinized starch, wine tank, wheat sugar, wheat starch, etc.
Our Service
Package & Shipping
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is Located in Changzhou.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
