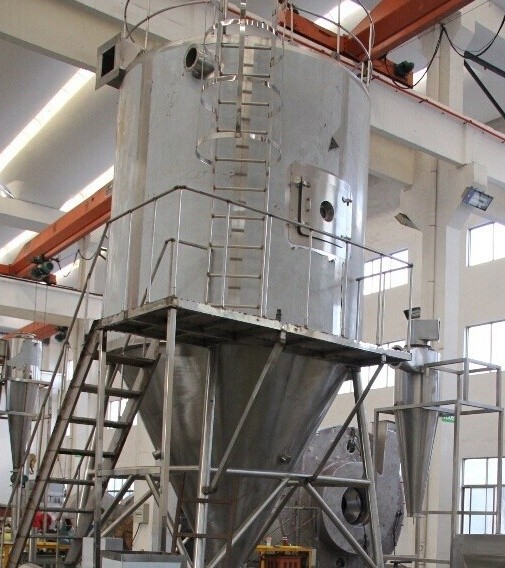

With Atomizing System High Speed Rotary Wheel Centrifugal Spray
Dryer
Spray Dryer is widely used in food, pharmaceutical and chemical industry, such as egg powder, milk powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, coffee, creamer, coconut, milk, gelatin, gum and acacia, etc.
Working Principle
After filtering and heating, the air enters the air distributor on the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the high-speed centrifugal atomizer at the top of the tower, and (rotating) sprays into very fine misty liquid beads, which can be dried into finished products in a very short time in co-current contact with hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is evacuated by the fan.
Performance Characteristics
◎ The drying speed is fast, and the surface area of the material liquid is greatly increased after atomization. In the hot air flow, 95%-98% of the water can be evaporated instantly, and the drying time is only a few seconds. It is especially suitable for the drying of heat-sensitive materials.
◎ The product has good uniformity, fluidity and solubility, high purity and good quality.
◎ Simplified production process and convenient operation and control. For liquids with a moisture content of 40-60% (up to 90% for special materials), it can be dried into powder products at one time, without crushing and screening after drying, reducing production procedures and improving product purity. The product particle size, bulk density and water content can be adjusted by changing the operating conditions within a certain range, and the control and management are very convenient.
Product Details
Application
Technical Parameter
|
Material: |
Solution (include some suspension liquids) |
|
Max. water evaporation capacity of host machine: |
About 6L/h |
|
Inlet air temperature: |
From room temperature to 330℃ |
|
Outlet air temperature: |
From room temperature to 140℃ |
|
Heating method: |
Electrical heating |
|
Drying method: |
Centrifugal atomization |
|
Equipment material: |
304 stainless steel |
|
Installation site: |
Indoor |
|
Working voltage: |
380V 50-60HZ |
|
Floor area (length, width and height): |
2.0m*1.3m*2.15m |
Warranty & Service
Pre-sale service:
--24 Hours online service.
--Help choose right model with a series of service and advise.
--Provide you the best quote offer.
--Provide discount for bulk orders.
--Meet your customized requirement.
--Choose payment term convenient for you.
--Promptly production and delivery information.
--Provide invoice.
After-sale service:
--Product installation support.
--Technical Engineer are available.
--Remote control technical consultation.
--1 year warranty service and lifelong maintenance.
Changzhou Melton Trading Co., Ltd was established in 2008. Our company is located in the birthplace of China's drying equipment industry - Zhenglu Industrial Park, Changzhou City, Jiangsu Province. It is a modern enterprise engaged in the R&D, production and sales of various drying equipment, sludge dryers, vacuum dryers, granulators, pulverizers, mixers, screening and dust removal and other equipment. In recent years, we have continuously increased investment in technical transformation, and manufactured a variety of low-energy, low-emission dryers to meet customers' environmental protection production needs.
All kinds of drying equipment produced by our company are widely used in pharmaceutical, chemical, food, agricultural and sideline product processing, textile, electronics, light industrial products, fertilizer, feed and other fields. The products are all over the country and exported to Southeast Asia, Europe, America and other countries.
The company adheres to the entrepreneurial philosophy of "technical innovation, quality-oriented", promotes the work style of "simple and rigorous, strives for perfection", advocates "enterprise integrity, considerate service", regards product quality as life, and respects customers from all over the world as friends.
We warmly welcome people from all walks of life to come to cooperate, negotiate and seek common development!
◎Name of material and liquid, physical properties: solid content (or water content), viscosity, surface tension, PH value.
◎After drying, powder capacity, allowable residual water content, particle size, and upper limit of allowable temperature.
◎Production, daily working hours.
◎Available energy: steam pressure available, electric capacity, available for coal, oil and gas.
◎Control requirements: Whether the inlet and outlet temperatures need to be controlled automatically.
◎Powder collection requirements: whether to install bag traps, and environmental requirements for exhaust emissions.
◎Other special requirements.
