Name: Universal Ultra Fine Powder Grinding Machine For Medicine / Chemical / Foodstuff
Brand: Changzhou Melton Trading Co., LTD
SKU: UIM,Customized
Price: 43.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Output (kg/h): 100 - 300 Kg/h

Output Size (mesh): 20 - 120 Mesh

Feeding Size (mm): 1 - 10 Mm

Voltage: 380V,50Hz,3P,Customized

Power (kW): 4-30KW

Application: Chemical Industry, Medicine, Food, Spices, Resin Powder

Range Of Spindle Speed(r.p.m): 3800 - 4500 R.p.m

Warranty: 1 Year

Name: Ultrafine Grinding Mill

Highlight:

Ultra Fine Powder Grinder

Ultra Fine Powder Grinding Machine

Ultrafine Grinder

Basic Infomation

Place of Origin: Changzhou，China

Brand Name: Melton

Certification: CE/ISO

Model Number: UIM,Customized

Payment & Shipping Terms

Packaging Details: Steel plate or wooden package.If special packaging requirement is made, we will try our best to meet your satisfaction.

Delivery Time: 6-9 WORK

Payment Terms: L/C, T/T

Supply Ability: 5 Set/Sets per Month

Gallery

Universal Ultra Fine Powder Grinding Machine For Medicine / Chemical / Foodstuff

Product Description

Universal Impact Ultrafine Grinding Mill For 40-120 Mesh,Used In Medicine/Chemical/Foodstuff/Resin Powder

Powder grinding machine Features

1. Wide application and large handling capacity.

2. Simple and compact construction; smooth and steady running.

3. The material grinding process is fast and reliable, grinding fitness is adjustable.

4. The surface of the multifunctional grinding machine is smooth, easy to clean.

Powder grinding machine Application

1. All kinds of grains: sesame, walnut, rice, black rice, soybean, mung bean, red bean, peanut, lotus seed, corn, sorghum, barley, buckwheat, oat, etc;

2. Spice: chili, pepper, nutmeg, cinnamon, anise, basil, Cardamom, Clove, Coriander, Cumin, Mint, Mustard, Parsley,Rosemary, Turmeric etc.

3. Dry medical materials: Chinese yam, almond, poria cocos, red dates, gorgon fruit, wolfberry, CoixSeed, hawthorn, fleece-flower root, red bean, donkey-hide gelatin, frankincense, dodder, angelica sinensis, radix codonopsis, etc;

4. Other materials: ordinary chemical materials, etc.

Products Description

Working Method

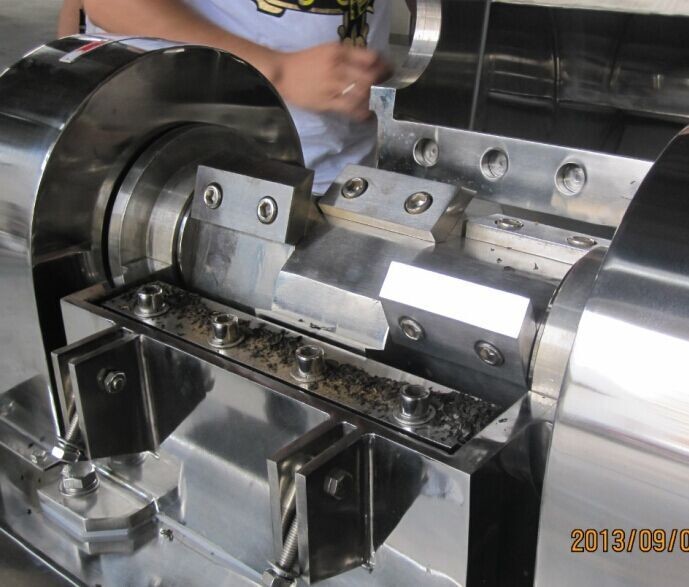

It makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.Since it features a simple structure,firm and stable operation and good crushing effect,the crushed matterials can be discharged directly apertures.Besides,the whole machine is made of stainless steel.Theinner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon dus to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements.

Universal Ultra Fine Powder Grinding Machine For Medicine / Chemical / Foodstuff 2

Technical Parameter

Model	Prodution Capacity(kg/h)	Spindle Speed(r/min)	Size of Input Granules(mm)	Grinding Fineness(Fineness)	Grinding Motor Power(KW)	Vacuum Motor Power(KW)	Machine Dimensions(mm)
20B	60-150	4500	6	60-120	5.5	1.5	1100×600×1650
30B	100-300	3800	10	60-120	7.5	1.5	1200×650×1650
40B	160-800	3400	12	60-120	11	1.5	1400×700×231

Schematic

Universal Ultra Fine Powder Grinding Machine For Medicine / Chemical / Foodstuff 4

Product Details

Package & Shipping

Our Serives
